Automotive Paint Finishing Process Overview

Automotive Paint Process Overview
Automotive Paint Process Overview
Automotive Paint Process Overview
Automotive Paint Process Overview
Automotive Paint Process Overview
Automotive Paint Process Overview
  • 5 stage powerwash
  • 6 Fanuc P-145 robots
  • Robotic flame treatment for TPO plastics
  • 2k capability in primer, base and clear zones
  • Non-electrostatic, conventional airspray in all zones
  • 40-minute cure oven at 180 degrees farenheit

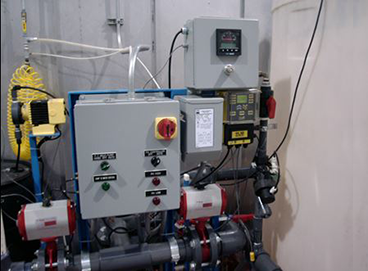

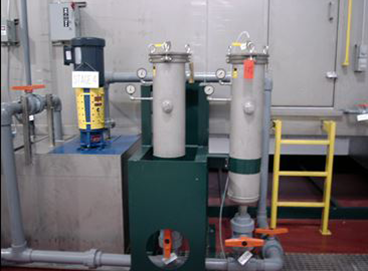

Power Wash

Stage 1:
Pre Clean 30 sec, Drain 48 sec

Stage 2:
Wash 90 sec 145F, Drain 48 sec

Stage 3:
Rinse 60 sec, Drain 48 sec

Stage 4:

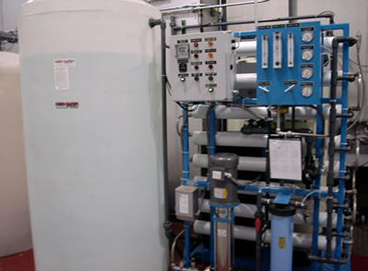

RO Rinse 30 sec, Drain 48 sec

Stage 5:
Halo RO Rinse 30 sec, Drain 48 sec

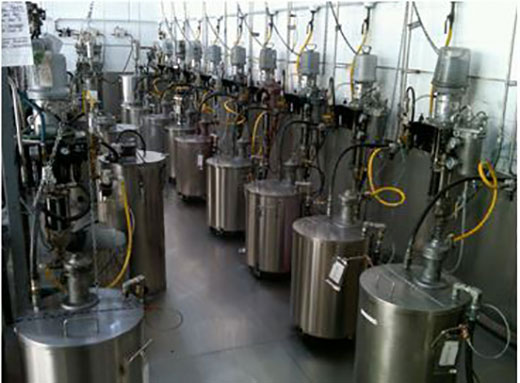

Paint Mix Room

  • Basecoat Systems: 24 recirculating
  • Clear Systems: 3
  • Primer Systems: 3

Over 2,000 SF climate controlled storage area for paint inventory.

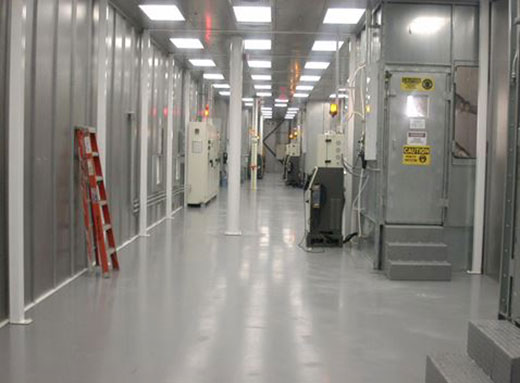

Air Handling

  • Recirculated airstream with 15% fresh air
  • Four levels filtration in all zones
  • Regenerative thermal oxidizer for all emissions
  • Downdraft waterwash booths in all zones

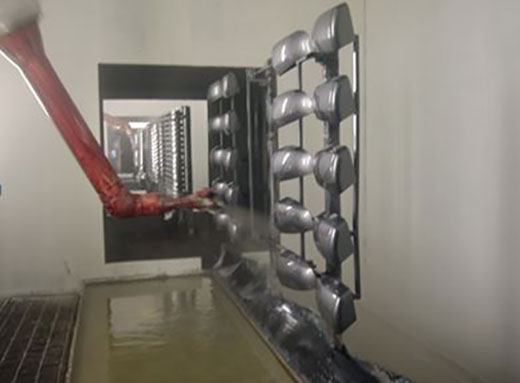

Robotics

  • Flame Treatment: Fanuc P-145
  • Primer Booth: Fanuc P-145
  • Basecoat Booth 1 and 2: Fanuc P-145s
  • Basecoat 3: Manual Booth
  • Basecoat 4: Maunal Booth with Tri-coat Capability
  • Clear Booth 1 and 2: Fanuc P-145s
  • Clearcoat 3: Manual Booth
